Stainless Steel S S 304 Landing (Fire Hydrant) Valve as per IS :5290 (Flanged)

Article Code

1093A

1093A

Stainless Steel S S 304 Landing (Fire Hydrant) Valve as per IS :5290 (Flanged)

Salient Features
  • Design Standard IS 5290.
  • Confirming to Type A specification.
  • Screwed in Bonnet having instantaneous coupling with single outlet.
  • PTFE Gland Packing for longer life and smooth operation of stem.
  • Large flow way area to get full flow of water.
  • Leakage proof by virtue of elastomer seat.
  • Smooth operation of blank cap for quick mounting of water pipe.
  • Life long rust free service.

Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C

Download PDF
Suitable For

Steam

Water

Oil

Air

Gases

Salient Features
  • Design Standard IS 5290.
  • Confirming to Type A specification.
  • Screwed in Bonnet having instantaneous coupling with single outlet.
  • PTFE Gland Packing for longer life and smooth operation of stem.
  • Large flow way area to get full flow of water.
  • Leakage proof by virtue of elastomer seat.
  • Smooth operation of blank cap for quick mounting of water pipe.
  • Life long rust free service.

Test Pressure (Hydrostatic) :
Shell : 21 kg/cm²g (300 psig)
Seat : 14 kg/cm²g (200 psig)
Maximum Working Temperature : 110°C

Suitable For
Steam Water Oil Air Gases
Download PDF

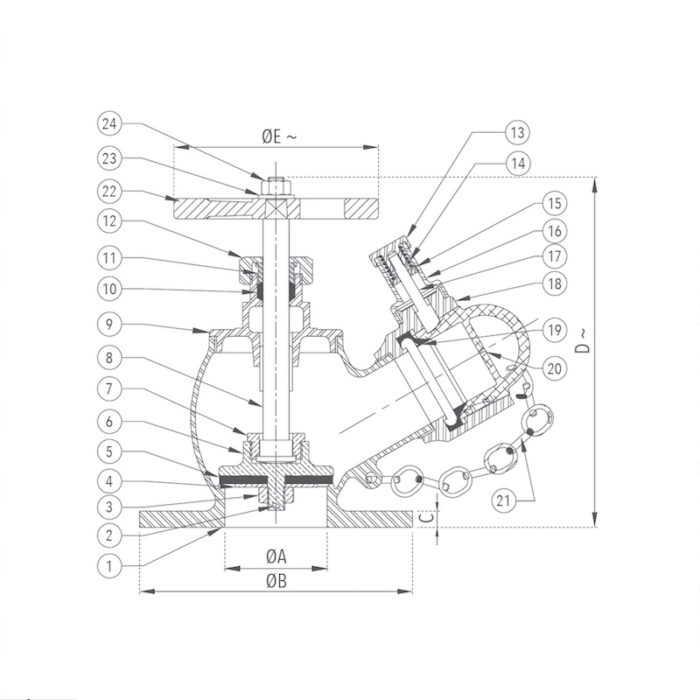

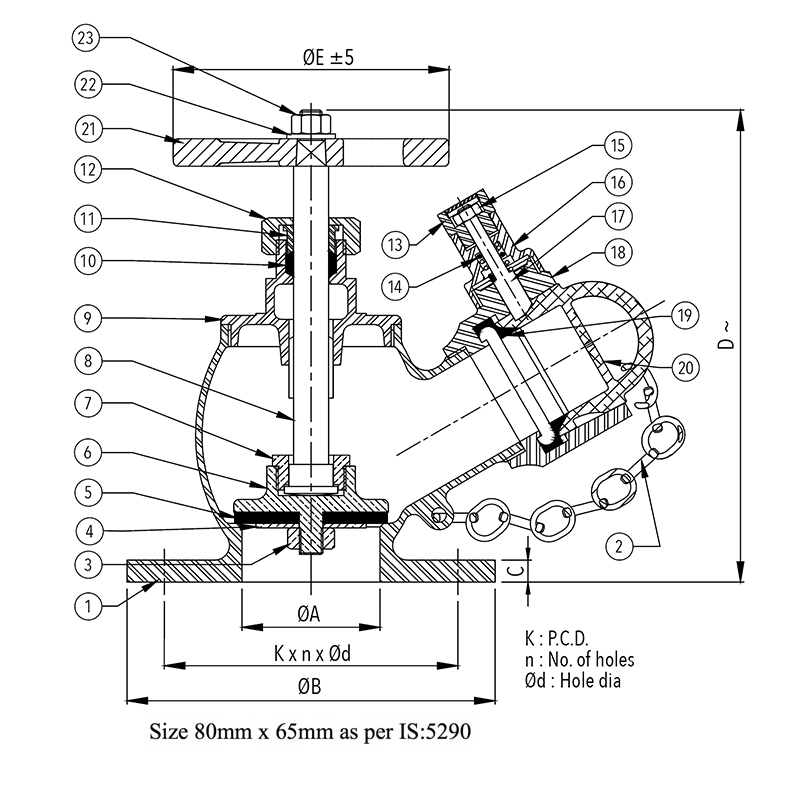

Materials
P.No. Name of Part Material of Construction Specification Qty.
1 Body Stainless Steel IS 3444 Gr. 1 1
2 Spilt Pin Stainless Steel – – – 1
3 Disc Nut Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
4 Washer Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
5 Disc Washer Rubber IS 937 1
6 Disc Holder Stainless Steel IS 3444 Gr. 1 1
7 Check Nut Stainless Steel IS 3444 Gr. 1 1
8 Stem Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
9 Bonnet Stainless Steel IS 3444 Gr. 1 1
10 Gland Packing PTFE BSEN 12086 – 1  –
11 Gland Stainless Steel IS 3444 Gr. 1 1
12 Gland Nut Stainless Steel IS 3444 Gr. 1 1
13 Cap Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
14 Spring Stainless Steel IS 4454 Part 4 Gr. 2 1
15 Adjusting Ring Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
16 Cam Housing Stainless Steel IS 3444 Gr. 1 1
17 Cam Tooth Stainless Steel IS 3444 Gr. 1 1
18 Instantaneous Coupling Stainless Steel IS 3444 Gr. 1 1
19 Washer Rubber IS 937 1
20 Blank Cap Aluminium / ABS Plastic IS 617 / – – – 1
21 Chain Carbon Steel  – – – 1
22 Handwheel Cast Iron IS 210 Gr. FG 200 1
23 Washer Carbon Steel – – – 1
24 Nut Carbon Steel – – – 1
1093A Stainless Steel S S 304 Landing (Fire Hydrant) Valve as per IS :5290 (Flanged)
1093A Stainless Steel S S 304 Landing (Fire Hydrant) Valve as per IS :5290 (Flanged)
P.No. Name of Part Material of Construction Specification Qty.
1 Body Stainless Steel IS 3444 Gr. 1 1
2 Spilt Pin Stainless Steel – – – 1
3 Disc Nut Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
4 Washer Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
5 Disc Washer Rubber IS 937 1
6 Disc Holder Stainless Steel IS 3444 Gr. 1 1
7 Check Nut Stainless Steel IS 3444 Gr. 1 1
8 Stem Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
9 Bonnet Stainless Steel IS 3444 Gr. 1 1
10 Gland Packing PTFE BSEN 12086 – 1  –
11 Gland Stainless Steel IS 3444 Gr. 1 1
12 Gland Nut Stainless Steel IS 3444 Gr. 1 1
13 Cap Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
14 Spring Stainless Steel IS 4454 Part 4 Gr. 2 1
15 Adjusting Ring Stainless Steel IS 6603 Gr. X04Cr19Ni9 1
16 Cam Housing Stainless Steel IS 3444 Gr. 1 1
17 Cam Tooth Stainless Steel IS 3444 Gr. 1 1
18 Instantaneous Coupling Stainless Steel IS 3444 Gr. 1 1
19 Washer Rubber IS 937 1
20 Blank Cap Aluminium / ABS Plastic IS 617 / – – – 1
21 Chain Carbon Steel  – – – 1
22 Handwheel Cast Iron IS 210 Gr. FG 200 1
23 Washer Carbon Steel – – – 1
24 Nut Carbon Steel – – – 1
Sizes / Dimensions
Size (Inches) Size (mm) ØA ØB C D ~ ØE ~
3 80 75 200 12 230 150
Download PDF
