Product Name

Bronze Gate Valve Rising Stem (Screwed)

Article Code

1035B

1035B

Bronze Gate Valve Rising Stem (Screwed)

Salient Features
  • Screwed female ends to IS 554 / BS21 / ISO – 7.
  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Solid Wedge.
  • Provision for Re-packing under pressure.
  • Designed sheet metal handwheel for a firm grip and convenient operation.
  • Premium quality PTFE Gland Packing.

Test Pressure(Hydrostatic) Class-1 :
Shell : 1.5 Mpa
Seat & Back Seat : 1.0 Mpa
Maximum Working Temperature : 45°C

Download PDF
1035B Bronze Gate Valve Rising Stem (Screwed)
Suitable For

Steam

Water

Oil

Air

Gases

1035B Bronze Gate Valve Rising Stem (Screwed)
Salient Features
  • Screwed female ends to IS 554 / BS21 / ISO – 7.
  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Solid Wedge.
  • Provision for Re-packing under pressure.
  • Designed sheet metal handwheel for a firm grip and convenient operation.
  • Premium quality PTFE Gland Packing.

Test Pressure(Hydrostatic) Class-1 :
Shell : 1.5 Mpa
Seat & Back Seat : 1.0 Mpa
Maximum Working Temperature : 45°C

Suitable For
Steam Water Oil Air Gases
Download PDF
Materials
P.No. Name of Part Material of Construction Specification Quantity
1 Body Bronze IS 318 Gr. LTB 2 1
2 Wedge Bronze IS 318 Gr. LTB 2 1
3 Stem Forged Brass IS 6912 Gr. LTB 2 1
4 Bonnet Bronze IS 318 Gr. LTB 2 1
5 Gland Packing PTFE – – –
6 Gland Forged Brass IS 6912 Gr. FLB 1
7 Gland Nut Forged Brass IS 6912 Gr. FLB
8 Hand Wheel Sheet Metal (Powder Coated) – – – 1
9 Name Plate Aluminium – – – 1
10 Washer Carbon Steel (Zinc Plated) – – – 1
11 Screw/Bolt Carbon Steel (Zinc Plated) – – – 1
1035B Bronze Gate Valve Rising Stem (Screwed)
1035B Bronze Gate Valve Rising Stem (Screwed)
P.No. Name of Part Material of Construction Specification Quantity
1 Body Bronze IS 318 Gr. LTB 2 1
2 Wedge Bronze IS 318 Gr. LTB 2 1
3 Stem Forged Brass IS 6912 Gr. LTB 2 1
4 Bonnet Bronze IS 318 Gr. LTB 2 1
5 Gland Packing PTFE – – –
6 Gland Forged Brass IS 6912 Gr. FLB 1
7 Gland Nut Forged Brass IS 6912 Gr. FLB
8 Hand Wheel Sheet Metal (Powder Coated) – – – 1
9 Name Plate Aluminium – – – 1
10 Washer Carbon Steel (Zinc Plated) – – – 1
11 Screw/Bolt Carbon Steel (Zinc Plated) – – – 1

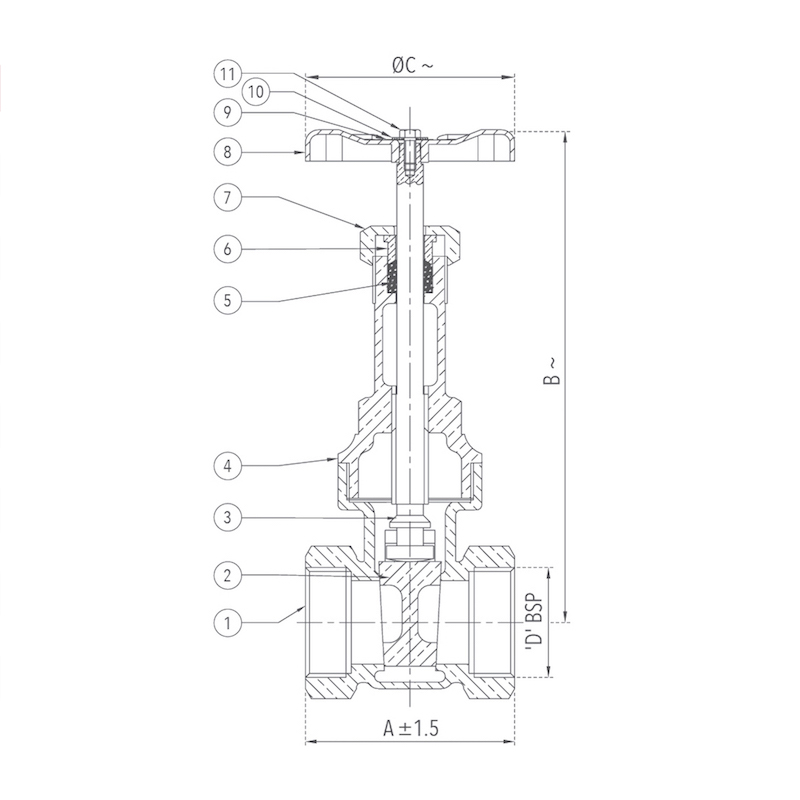

Sizes / Dimensions
Size (Inches) Size (mm) A ±1.5 B ~ ØC ~ D
1/2 15 60 120 60 1/2″
3/4 20 60 128 65 3/4″
1 25 70 150 70 1″
1 1/4 32 80 188 80 1 1/4″
1 1/2 40 90 214 90 1 1/2″
2 50 100 243 110 2″
2 1/2 65 105 310 115 2 1/2″
3 80 125 360 140 3″
4 100 160 432 160 4″

~ ±10

Download PDF
