Product Name
Forged Brass Compact Pressure Reducing Value (Screwed)
Article Code
1040B
Forged Brass Compact Pressure Reducing Value (Screwed)
Salient Features
- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Most ideal for sensitive and a consistent fluid regulation.
- Diaphragm-less, Piston Type.
- Piston-operated, hence more reliable than conventional diaphragm type PRV.
- Rugged body, compact-sized, easy to install.
- Provided with Premium Quality Nitrile Rubber ‘O’Rings.
- Demands low maintenance and virtually noiseless.
- Most of the critical working components have a distinct edge of being hot brass forged.
- Facility provided to install a Pressure Gauge of 1/4″ BSP size to gauge the critically relevant Outlet Pressure.
- Designed to suit every application requiring accurate pressure ratings.
- All ‘O’ rings are of superior food grade material, hence ensuring absolute zero health hazard.
Test Pressure (Hydrostatic) :
Shell : 35 bar
Maximum Upstream Pressure : 25 bar
Maximum Working Temperature : 80°C
NOTE : At maximum inlet pressure 25 bar, the minimum outlet pressure will be 5.5 bar.
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Most ideal for sensitive and a consistent fluid regulation.
- Diaphragm-less, Piston Type.
- Piston-operated, hence more reliable than conventional diaphragm type PRV.
- Rugged body, compact-sized, easy to install.
- Provided with Premium Quality Nitrile Rubber ‘O’Rings.
- Demands low maintenance and virtually noiseless.
- Most of the critical working components have a distinct edge of being hot brass forged.
- Facility provided to install a Pressure Gauge of 1/4″ BSP size to gauge the critically relevant Outlet Pressure.
- Designed to suit every application requiring accurate pressure ratings.
- All ‘O’ rings are of superior food grade material, hence ensuring absolute zero health hazard.
Test Pressure (Hydrostatic) :
Shell : 35 bar
Maximum Upstream Pressure : 25 bar
Maximum Working Temperature : 80°C
NOTE : At maximum inlet pressure 25 bar, the minimum outlet pressure will be 5.5 bar.
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Plug | Forged Brass | IS 6912 Gr. FLB | 1 |
| 2 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 3 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 4 | Disc Holder | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Body | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Chamber | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Piston | Forged Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB 2 | 1 |
| 8 | Disc | Nitrile Rubber | IS 5192 – 1 | 1 |
| 9 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 10 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 11 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 12 | Spring | Spring Steel | EN 47 Gr. B | 1 |
| 13 | Adjustable Ring | Forged Brass | IS 6912 Gr. FLB | 1 |
| 14 | CAP | PVC | IS 15225 | 1 |
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Plug | Forged Brass | IS 6912 Gr. FLB | 1 |
| 2 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 3 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 4 | Disc Holder | Forged Brass | IS 6912 Gr. FLB | 1 |
| 5 | Body | Forged Brass | IS 6912 Gr. FLB | 1 |
| 6 | Chamber | Forged Brass | IS 6912 Gr. FLB | 1 |
| 7 | Piston | Forged Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB 2 | 1 |
| 8 | Disc | Nitrile Rubber | IS 5192 – 1 | 1 |
| 9 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 10 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 11 | O – Ring | Nitrile Rubber | IS 5192 – 1 | 1 |
| 12 | Spring | Spring Steel | EN 47 Gr. B | 1 |
| 13 | Adjustable Ring | Forged Brass | IS 6912 Gr. FLB | 1 |
| 14 | CAP | PVC | IS 15225 | 1 |

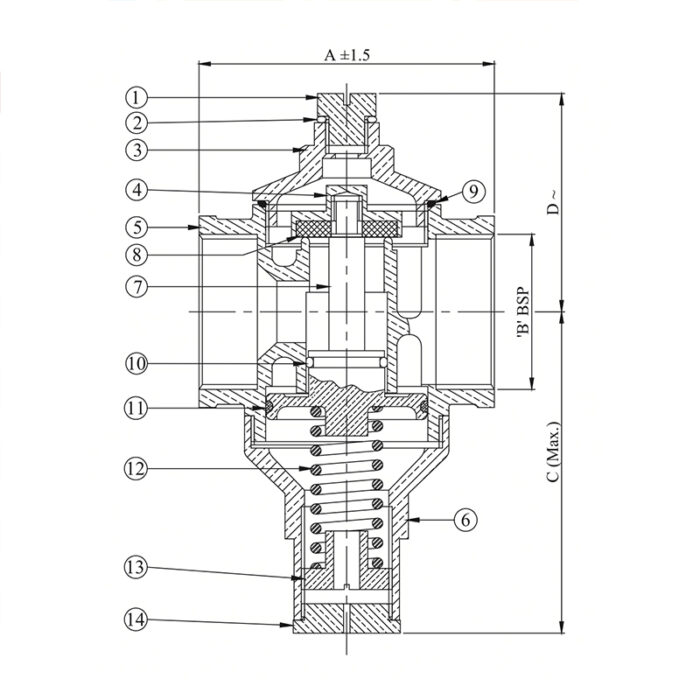

Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ | D ~ |
|---|---|---|---|---|---|
| 1/2 | 15 | 62 | 1/2″ | 68 | 44 |
| 3/4 | 20 | 62 | 3/4″ | 68 | 44 |
| 1 | 25 | 86 | 1″ | 93 | 61 |
| 1 1/4 | 32 | 91 | 1 1/4″ | 99 | 65 |
| 1 1/2 | 40 | 91 | 1 1/2″ | 99 | 65 |
| 2 | 50 | 91 | 2″ | 101 | 71 |
~ ±10
