Product Name
Forged Steel Gate Valve, Class-800 (Full Bore)
Article Code
1075A
Forged Steel Gate Valve, Class-800 (Full Bore)
Salient Features
- Design Standard API 602 / BS EN ISO 15761 (BS 5352).
- Body and Bonnet are Phosphated, to ensure maximum resistance from rust.
- Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
- Screwed Female Ends to BSPT / NPT / Socket Welded to ANSI B16.11.
Test Pressure :
Shell (Hydrostatic) : 207 bar (3000 psig)
Seat & Back Seat(Hydrostatic) : 152 bar (2200 psig)
Seat (Pneumatic) : 6.9 bar (100 psig)
Maximum Working Temperature : 425°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Design Standard API 602 / BS EN ISO 15761 (BS 5352).
- Body and Bonnet are Phosphated, to ensure maximum resistance from rust.
- Bolted Bonnet, Outside Screw, Yoke Type, Rising Stem.
- Screwed Female Ends to BSPT / NPT / Socket Welded to ANSI B16.11.
Test Pressure :
Shell (Hydrostatic) : 207 bar (3000 psig)
Seat & Back Seat(Hydrostatic) : 152 bar (2200 psig)
Seat (Pneumatic) : 6.9 bar (100 psig)
Maximum Working Temperature : 425°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|

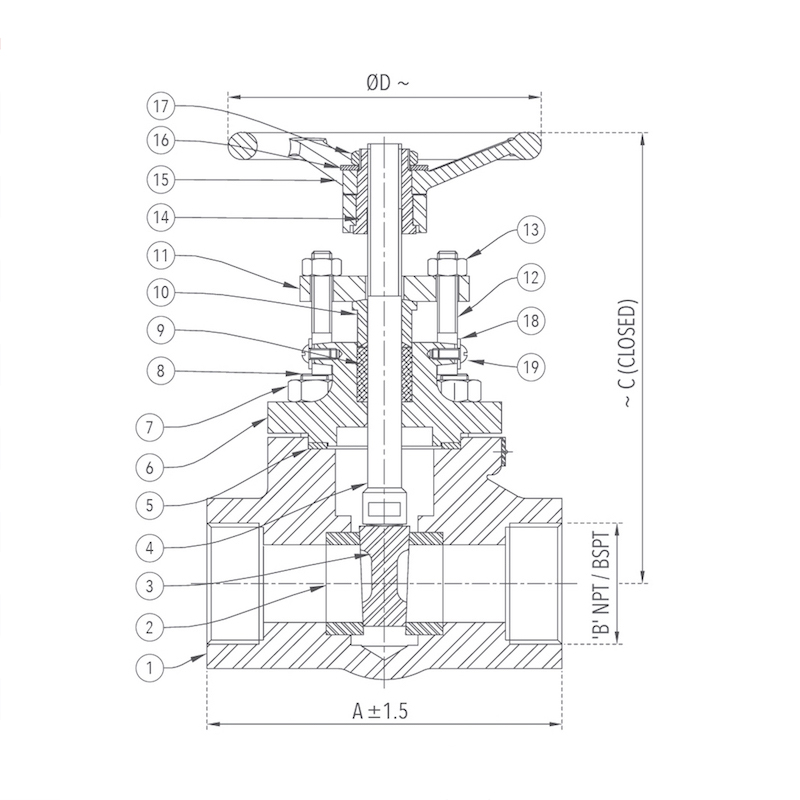

Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Forged Carbon Steel | ASTM A 105 | 1 |
| 2 | Body Seat Ring | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 3 | Wedge (Solid) | Stainless Steel | ASTM A217 Gr. CA 15 | 1 |
| 4 | Stem | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 1 |
| 5 | Gasket | Spiral Wound S.S. (Type 316) Graphite Filled | – – – | 1 |
| 6 | Bonnet | Forged Carbon Steel | ASTM A 105 | 1 |
| 7 | Bonnet Nut | Alloy Steel | ASTM A 194 Gr. 2H | 4 |
| 8 | Stud | Alloy Steel | ASTM A 193 Gr. B7 | 4 |
| 9 | Gland Packing | Non Asbestos Graphite With Corrosion Inhibitor | – – – | |
| 10 | Gland | Stainless Steel | ASTM A276 Type 410. | 1 |
| 11 | Gland Flange | Carbon Steel | – – – | 1 |
| 12 | Eye Bolt | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 13 | Nut | Alloy Steel | ASTM A194 Gr. 2H | 2 |
| 14 | Yoke Sleeve | Aluminium Bronze | BSEN 1982 AB – 1 | 1 |
| 15 | Handwheel | Ductile Iron | ASTM A 536 / IS 1865 | 1 |
| 16 | Identification Plate | Aluminium | – – – | 1 |
| 17 | Check Nut | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 18 | Washer | Carbon Steel | – – – | 2 |
| 19 | Screw | Carbon Steel | – – – | 2 |
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Forged Carbon Steel | ASTM A 105 | 1 |
| 2 | Body Seat Ring | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 3 | Wedge (Solid) | Stainless Steel | ASTM A217 Gr. CA 15 | 1 |
| 4 | Stem | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 1 |
| 5 | Gasket | Spiral Wound S.S. (Type 316) Graphite Filled | – – – | 1 |
| 6 | Bonnet | Forged Carbon Steel | ASTM A 105 | 1 |
| 7 | Bonnet Nut | Alloy Steel | ASTM A 194 Gr. 2H | 4 |
| 8 | Stud | Alloy Steel | ASTM A 193 Gr. B7 | 4 |
| 9 | Gland Packing | Non Asbestos Graphite With Corrosion Inhibitor | – – – | |
| 10 | Gland | Stainless Steel | ASTM A276 Type 410. | 1 |
| 11 | Gland Flange | Carbon Steel | – – – | 1 |
| 12 | Eye Bolt | Stainless Steel | ASTM A276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 13 | Nut | Alloy Steel | ASTM A194 Gr. 2H | 2 |
| 14 | Yoke Sleeve | Aluminium Bronze | BSEN 1982 AB – 1 | 1 |
| 15 | Handwheel | Ductile Iron | ASTM A 536 / IS 1865 | 1 |
| 16 | Identification Plate | Aluminium | – – – | 1 |
| 17 | Check Nut | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 18 | Washer | Carbon Steel | – – – | 2 |
| 19 | Screw | Carbon Steel | – – – | 2 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ | ØD ~ |
|---|---|---|---|---|---|
| 3/8 | 10 | 85 | 3/8″ | 143 | 85 |
| 1/2 | 15 | 86 | 1/2″ | 146 | 85 |
| 3/4 | 20 | 101 | 3/4″ | 162 | 95 |
| 1 | 25 | 140 | 1″ | 226 | 155 |
| 1 1/4 | 32 | 140 | 1 1/4″ | 226 | 155 |
| 1 1/2 | 40 | 164 | 1 1/2″ | 230 | 155 |
~ ±10
