Product Name

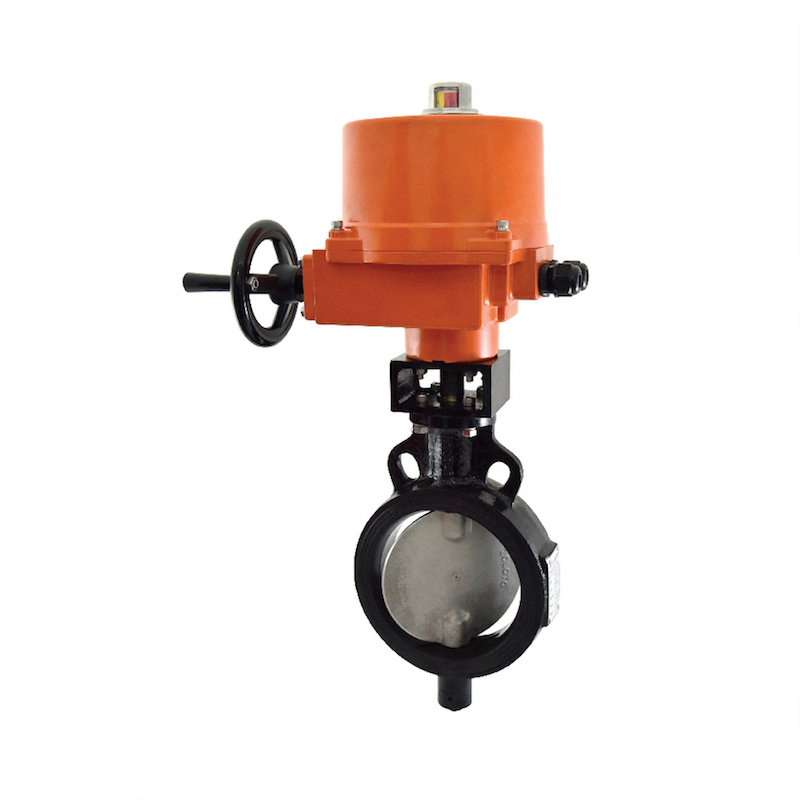

Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator

Article Code

1078F

1078F

Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator

Salient Features
  • Design Standard IS 13095 / BS EN 593 (BS 5155).
  • Wafer Type.
  • Electrical Acuator Operated.
  • S.G Iron construction.
  • Stainless Steel (CF8 / CF8M*) Disc which is accurately guided between the two stems.
  • Actuator is with position indicator and adjustable center stopper for both open and closed position.
  • Compliant with B.M.S (Building Management System) and PLC (Programmable Logic Control).
  • Inbuilt thermal protection and space heater
  • IP 67 / IP 68 protection available for outdoor application.
  • Inbuilt micro switch position feedback.
  • Input Voltage – 230 VAC/24 VDC* power supply.
  • Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
  • Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
  • Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
  • For manual operation allen key is provided.
  • Instrumental in Zero Water Waste installations.

*Valves with Neoprene / Viton / Silicon lining, IS 3444 Gr.4 /CF8M (S.S 316) Disc and 24VDC Input Voltage can also be provided at nominal extra cost.

PN 1.0 –
Test Pressure (Hydrostatic) :
Shell : 1.5 MPa
Seat : 1.1 MPa
Maximum Working Pressure : 1.0 MPa
Maximum Working Temperature : 90°C

Important Note : Advised to use canopy for enhanced protection from continuous weather exposure.

Download PDF
1078F Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator
Suitable For

Steam

Water

Oil

Air

Gases

1078F Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator
Salient Features
  • Design Standard IS 13095 / BS EN 593 (BS 5155).
  • Wafer Type.
  • Electrical Acuator Operated.
  • S.G Iron construction.
  • Stainless Steel (CF8 / CF8M*) Disc which is accurately guided between the two stems.
  • Actuator is with position indicator and adjustable center stopper for both open and closed position.
  • Compliant with B.M.S (Building Management System) and PLC (Programmable Logic Control).
  • Inbuilt thermal protection and space heater
  • IP 67 / IP 68 protection available for outdoor application.
  • Inbuilt micro switch position feedback.
  • Input Voltage – 230 VAC/24 VDC* power supply.
  • Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
  • Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
  • Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
  • For manual operation allen key is provided.
  • Instrumental in Zero Water Waste installations.

*Valves with Neoprene / Viton / Silicon lining, IS 3444 Gr.4 /CF8M (S.S 316) Disc and 24VDC Input Voltage can also be provided at nominal extra cost.

PN 1.0 –
Test Pressure (Hydrostatic) :
Shell : 1.5 MPa
Seat : 1.1 MPa
Maximum Working Pressure : 1.0 MPa
Maximum Working Temperature : 90°C

Important Note : Advised to use canopy for enhanced protection from continuous weather exposure.

Suitable For
Steam Water Oil Air Gases
Download PDF
Materials
P.No. Name of Part Material of Construction Specification Qty.
1 Electric Actuator – – – – – – 1
2 Actuator Base S.G. Iron IS 1865 Gr. 400/15 1
3 Packing Bush Bronze IS 318 Gr. LTB 2 1
4 Upper Stem Stainless Steel IS 6603 Gr. 12 Cr12 1
5 Body S.G Iron IS 1865 Gr. 400/15 1
6 Disc Stainless Steel IS 3444 Gr. 1 / ASTM A351 Gr. CF8 1
7 Studs for Actuator Carbon Steel IS 1367 4
8 Bush Bronze IS 318 Gr. LTB 2 1
9 Lower Stem Stainless Steel IS 6603 Gr. 12 Cr12 1
10 ‘O’ Ring Nitrile Rubber IS 5192 – 1 1
11 L – Key Screw Carbon Steel – – – 1
12 L-Key Bolts & Nuts Carbon Steel – – – 4 Each
13 Locking Washer Spring Steel – – –  4 Each
14 Body Lining EPDM / Nitrile IS 5192 – 1 1
15 Name Plate Aluminium – – – 1
16 Nuts Carbon Steel IS 1363 Part 3 Class 4.0 4
17 Spring Washer Spring Steel – – – 4
1078F Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator
1078F Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator
P.No. Name of Part Material of Construction Specification Qty.
1 Electric Actuator – – – – – – 1
2 Actuator Base S.G. Iron IS 1865 Gr. 400/15 1
3 Packing Bush Bronze IS 318 Gr. LTB 2 1
4 Upper Stem Stainless Steel IS 6603 Gr. 12 Cr12 1
5 Body S.G Iron IS 1865 Gr. 400/15 1
6 Disc Stainless Steel IS 3444 Gr. 1 / ASTM A351 Gr. CF8 1
7 Studs for Actuator Carbon Steel IS 1367 4
8 Bush Bronze IS 318 Gr. LTB 2 1
9 Lower Stem Stainless Steel IS 6603 Gr. 12 Cr12 1
10 ‘O’ Ring Nitrile Rubber IS 5192 – 1 1
11 L – Key Screw Carbon Steel – – – 1
12 L-Key Bolts & Nuts Carbon Steel – – – 4 Each
13 Locking Washer Spring Steel – – –  4 Each
14 Body Lining EPDM / Nitrile IS 5192 – 1 1
15 Name Plate Aluminium – – – 1
16 Nuts Carbon Steel IS 1363 Part 3 Class 4.0 4
17 Spring Washer Spring Steel – – – 4

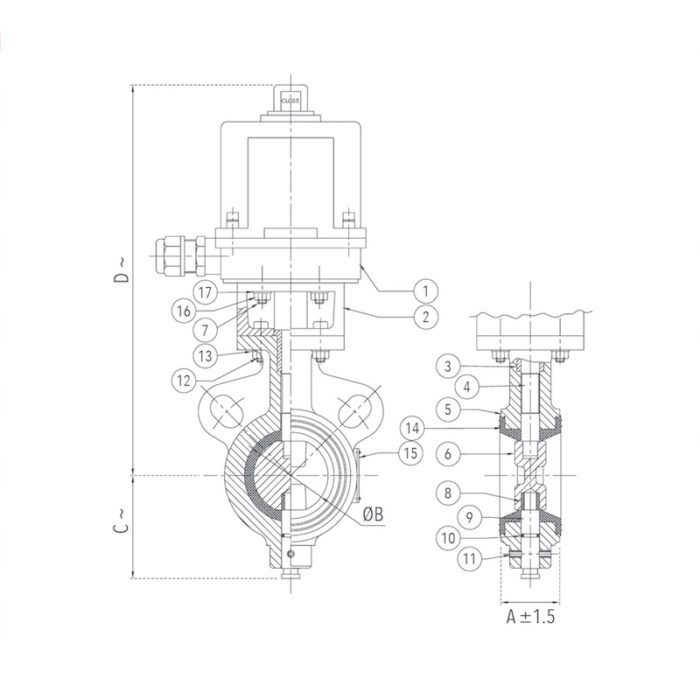

Sizes / Dimensions
Size (Inches) Size (mm) A ±1.5 ØB C ~ D ~ Actuator Model No.
1 1/2 40 33 40.6 57 283 ZSY 1
2 50 43 52.4 73 293 ZSY 1
2 1/2 65 46 67 80 306 ZSY 1
3 80 46 81.3 88 313 ZSY 1
4 100 52 101 110 341 ZSY 1
5 125 56 127.1 122 342 ZSY 2
6 150 56 151 151 370 ZSY 2
8 200 60 201.6 180 427 ZSY 2
10 250 68 252.2 220 516 ZSY 4
12 300 78 301.3 250 540 ZSY 4
14 350 86 352 295 610 ZSY 6

~ ±10

Note : Valves are also available with Control Panel, Magnetic Sensor for automated tank filling.

Download PDF
