Product Name

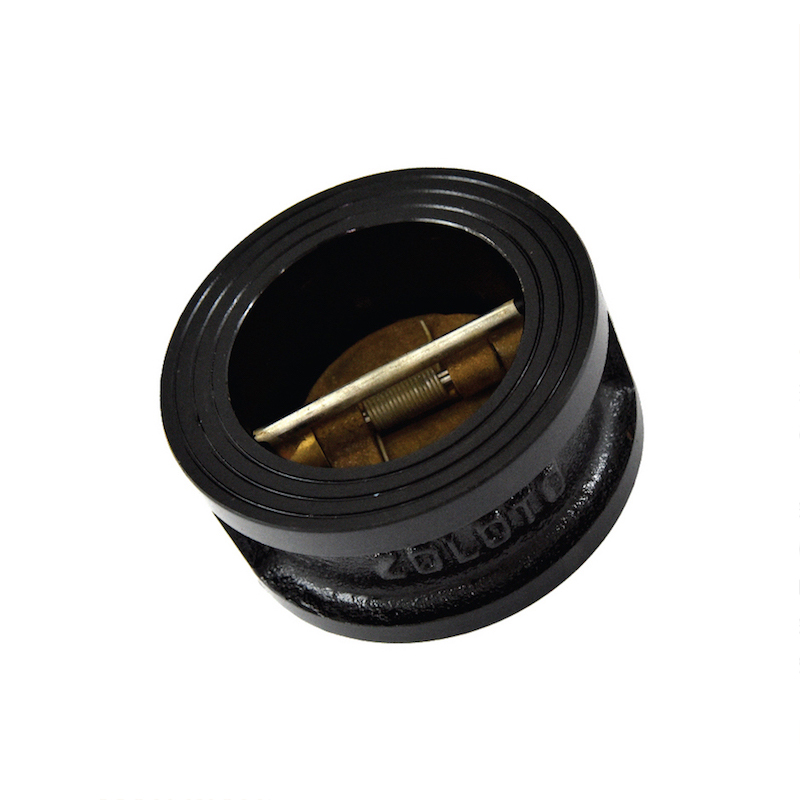

Cast Iron Dual Plate Wafer Type Check Valve, PN 16

Article Code

1082

1082

Cast Iron Dual Plate Wafer Type Check Valve, PN 16

Salient Features
  • Design standard API 594.
  • Wafer Type Design, to take lesser space than the conventional Check Valve.
  • Being light in weight, is more rigid than the standard Swing Type Check Valve, which needs expensive foundation and special supports.
  • Being cylindrical body, stresses are uniformly distributed.
  • Much longer seat life because of Bronze / S.S to Rubber contact.
  • Less wear and tear of seat surfaces.
  • End connections are designed to suit flanges drilled to ANSI B Class-125 / ASME B Class-150.
  • Water hammering effect is minimized in this design, since the closing of valve does not depend upon any back pressure or flow.
  • Each plate being half of the size of the swing check valve disc, provides straight flow path offering minimal resistance because of the spring’s assistance as closing of the valve initiates as soon as flow velocity dips below the designated minimum velocity.

Test Pressure (Hydrostatic) :
Shell : 24.50 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (230 psig)
Maximum Working Temperature : 80°C

Download PDF
1082 Cast Iron Dual Plate Wafer Type Check Valve, PN 16
Suitable For

Steam

Water

Oil

Air

Gases

1082 Cast Iron Dual Plate Wafer Type Check Valve, PN 16
Salient Features
  • Design standard API 594.
  • Wafer Type Design, to take lesser space than the conventional Check Valve.
  • Being light in weight, is more rigid than the standard Swing Type Check Valve, which needs expensive foundation and special supports.
  • Being cylindrical body, stresses are uniformly distributed.
  • Much longer seat life because of Bronze / S.S to Rubber contact.
  • Less wear and tear of seat surfaces.
  • End connections are designed to suit flanges drilled to ANSI B Class-125 / ASME B Class-150.
  • Water hammering effect is minimized in this design, since the closing of valve does not depend upon any back pressure or flow.
  • Each plate being half of the size of the swing check valve disc, provides straight flow path offering minimal resistance because of the spring’s assistance as closing of the valve initiates as soon as flow velocity dips below the designated minimum velocity.

Test Pressure (Hydrostatic) :
Shell : 24.50 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (230 psig)
Maximum Working Temperature : 80°C

Suitable For
Steam Water Oil Air Gases
Download PDF
Materials
P.No. Name of Part Material of Construction Specification Qty.
1 Body Cast Iron IS 210 Gr. FG 200 1
2 Body Lining Nitrile Rubber IS 5192 – 1 1
3 Flap / Disc Stainless Steel / Bronze ASTM A 351 Gr. CF8/CF8M / IS 318 Gr. LTB2 2
4 Hinge Pin Stainless Steel ASTM A 276 Type 304 1
5 Stop Pin Stainless Steel ASTM A 276 Type 304 1
6 Spring Stainless Steel Type 304  –
7 Packing Washer Stainless Steel/PTFE ASTM A 276 Type 304 /  – – –  –
8 Packing Washer Nitrile Rubber / PTFE IS : 5192-1 / – – –  –
9 Retainer Plug Carbon Steel  – – – 2/4
1082 Cast Iron Dual Plate Wafer Type Check Valve, PN 16
1082 Cast Iron Dual Plate Wafer Type Check Valve, PN 16
P.No. Name of Part Material of Construction Specification Qty.
1 Body Cast Iron IS 210 Gr. FG 200 1
2 Body Lining Nitrile Rubber IS 5192 – 1 1
3 Flap / Disc Stainless Steel / Bronze ASTM A 351 Gr. CF8/CF8M / IS 318 Gr. LTB2 2
4 Hinge Pin Stainless Steel ASTM A 276 Type 304 1
5 Stop Pin Stainless Steel ASTM A 276 Type 304 1
6 Spring Stainless Steel Type 304  –
7 Packing Washer Stainless Steel/PTFE ASTM A 276 Type 304 /  – – –  –
8 Packing Washer Nitrile Rubber / PTFE IS : 5192-1 / – – –  –
9 Retainer Plug Carbon Steel  – – – 2/4

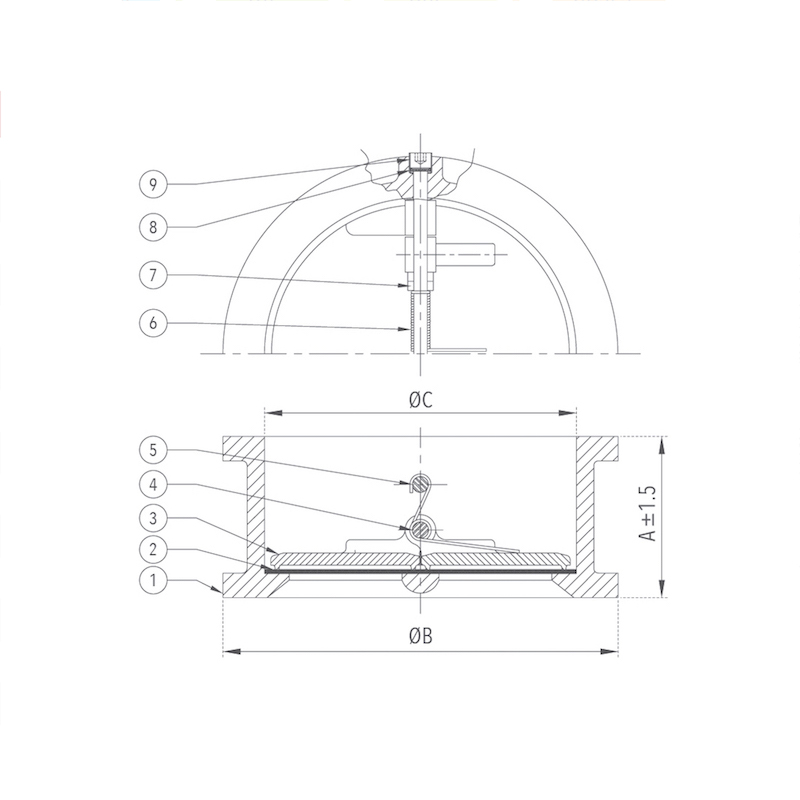

Sizes / Dimensions
Size (Inches) Size (mm) A ØB ØC
1 1/2 40 50 92 56
2 50 54 101 60
2 1/2 65 60 120 73
3 80 67 133 89
4 100 67 171 114
5 125 83 193 141
6 150 95 218 168
8 200 127 276 219
10 250 140 336 273.5
12 300 181 406 324
14* 350* 184 451 357

*Flap / Disc for Size 350 is of Bronze.

Download PDF
