Product Name
Cast Iron Bucket Type Steam Trap (Screwed)
Article Code
1090
Cast Iron Bucket Type Steam Trap (Screwed)
Salient Features
- Screwed Female Ends to BSP.
- Inverted Bucket Type, Bolted Cover.
- With Stainless Steel (S.S 304) renewable working parts.
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Maximum Working Pressure : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 220°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Screwed Female Ends to BSP.
- Inverted Bucket Type, Bolted Cover.
- With Stainless Steel (S.S 304) renewable working parts.
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Maximum Working Pressure : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 220°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Plug | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
| 2 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 3 | Cover | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 4 | Valve Seat | Stainless Steel | ASTM A 276 Type 304 | 1 |
| 5 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 6 | Valve | Stainless Steel | Type 304 | 1 |
| 7 | Valve Lever | Stainless Steel | Type 304 | 1 |
| 8 | Valve Hook | Stainless Steel | Type 304 | 1 |
| 9 | Bucket Hook | Stainless Steel | Type 304 | 1 |
| 10 | Bucket | Stainless Steel | Type 304 | 1 |
| 11 | Body | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 12 | Bucket Ring | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 13 | Nuts | Carbon Steel | IS 1367 | As Reqd. |
| 14 | Bolts | Carbon Steel | IS 1367 | As Reqd. |
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Plug | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
| 2 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 3 | Cover | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 4 | Valve Seat | Stainless Steel | ASTM A 276 Type 304 | 1 |
| 5 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 6 | Valve | Stainless Steel | Type 304 | 1 |
| 7 | Valve Lever | Stainless Steel | Type 304 | 1 |
| 8 | Valve Hook | Stainless Steel | Type 304 | 1 |
| 9 | Bucket Hook | Stainless Steel | Type 304 | 1 |
| 10 | Bucket | Stainless Steel | Type 304 | 1 |
| 11 | Body | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 12 | Bucket Ring | Cast Iron | IBR 86 To 93 Gr. A | 1 |
| 13 | Nuts | Carbon Steel | IS 1367 | As Reqd. |
| 14 | Bolts | Carbon Steel | IS 1367 | As Reqd. |

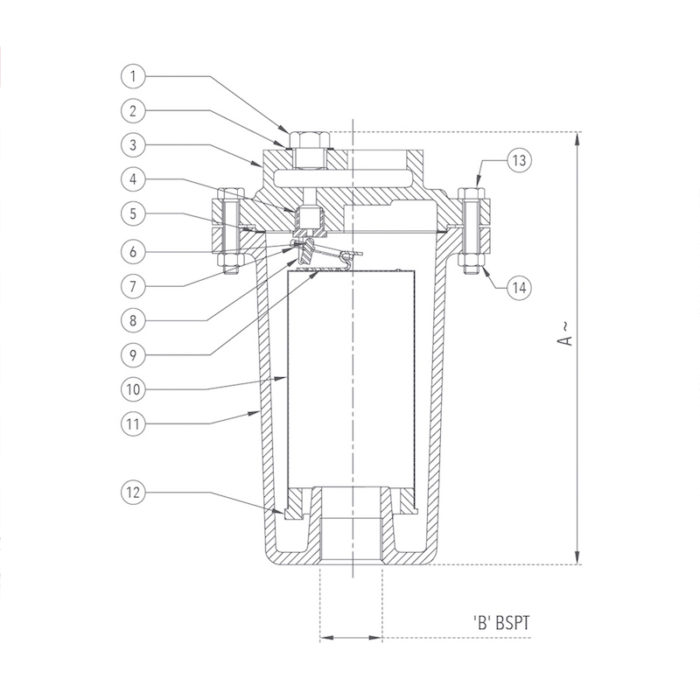

Sizes / Dimensions
| Size (Inches) | Size (mm) | A ~ | B |
|---|---|---|---|
| 1/2 | 15 | 210 | 1/2″ |
| 3/4 | 20 | 210 | 3/4″ |
| 1 | 25 | 265 | 1″ |
| 1 1/4 | 32 | 372 | 1 1/4″ |
| 1 1/2 | 40 | 372 | 1 1/2″ |
| 2 | 50 | 412 | 2″ |
