Product Name
Cast Iron Sluice Valve PN 1.6 (Flanged)
Article Code
1079B
Cast Iron Sluice Valve PN 1.6 (Flanged)
Salient Features
- Design Standard IS 14846 PN 1.6.
- Bolted Bonnet, Inside Screw, Non-Rising Stem.
- Rigid and Sturdy design.
- Handwheel Operated.
- Flange Ends as per IS 1538.
Test Pressure (Hydrostatic) :
Shell : 2.4 MPa
Seat : 1.6 MPa
Maximum Working Temperature : 45°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Design Standard IS 14846 PN 1.6.
- Bolted Bonnet, Inside Screw, Non-Rising Stem.
- Rigid and Sturdy design.
- Handwheel Operated.
- Flange Ends as per IS 1538.
Test Pressure (Hydrostatic) :
Shell : 2.4 MPa
Seat : 1.6 MPa
Maximum Working Temperature : 45°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|

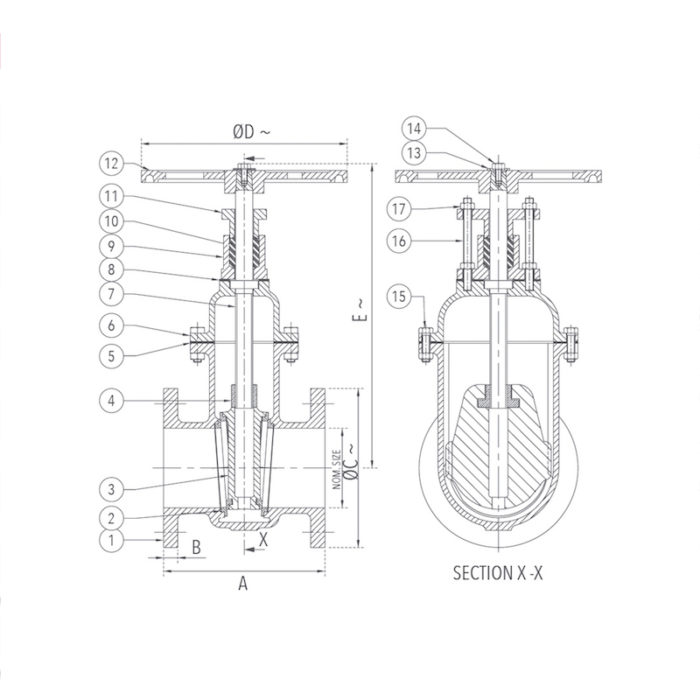

Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. | |
|---|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 2 | Seat Ring | Bronze | IS 318 Gr. LTB 2 | 4 | |
| 3 | Wedge | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 4 | Stem Bush | Bronze | IS 318 Gr. LTB 2 | 1 | |
| 5 | Gasket | Rubber | IS 638 Type B | 1 | |
| 6 | Bonnet | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 7 | Stem | Stainless Steel | IS 6603 Gr. 12 Cr. 12 | 1 | |
| 8 | Gasket | Rubber | IS 638 Type B | 1 | |
| 9 | Stuffing Box | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 10 | Gland Packing | Hemp & Jute | IS 5414 | – | |
| 11 | Gland Flange | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 12 | Handwheel | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 13 | Washer | Carbon Steel | – – – | 1 | |
| 14 | Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 1 | |
| 15 | Bolt & Nut | Carbon Steel | IS 1363 Part 1 Class 4.6
IS 1363 Part 3 Class 4.0 |
As Reqd. | |
| 16 | Stud / Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 2 | |
| 17 | Nut | Carbon Steel | IS 1363 Part 3 Class 4.0 |
|
| P.No. | Name of Part | Material of Construction | Specification | Qty. | |
|---|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 2 | Seat Ring | Bronze | IS 318 Gr. LTB 2 | 4 | |
| 3 | Wedge | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 4 | Stem Bush | Bronze | IS 318 Gr. LTB 2 | 1 | |
| 5 | Gasket | Rubber | IS 638 Type B | 1 | |
| 6 | Bonnet | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 7 | Stem | Stainless Steel | IS 6603 Gr. 12 Cr. 12 | 1 | |
| 8 | Gasket | Rubber | IS 638 Type B | 1 | |
| 9 | Stuffing Box | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 10 | Gland Packing | Hemp & Jute | IS 5414 | – | |
| 11 | Gland Flange | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 12 | Handwheel | Cast Iron | IS 210 Gr. FG 200 | 1 | |
| 13 | Washer | Carbon Steel | – – – | 1 | |
| 14 | Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 1 | |
| 15 | Bolt & Nut | Carbon Steel | IS 1363 Part 1 Class 4.6
IS 1363 Part 3 Class 4.0 |
As Reqd. | |
| 16 | Stud / Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 2 | |
| 17 | Nut | Carbon Steel | IS 1363 Part 3 Class 4.0 |
|

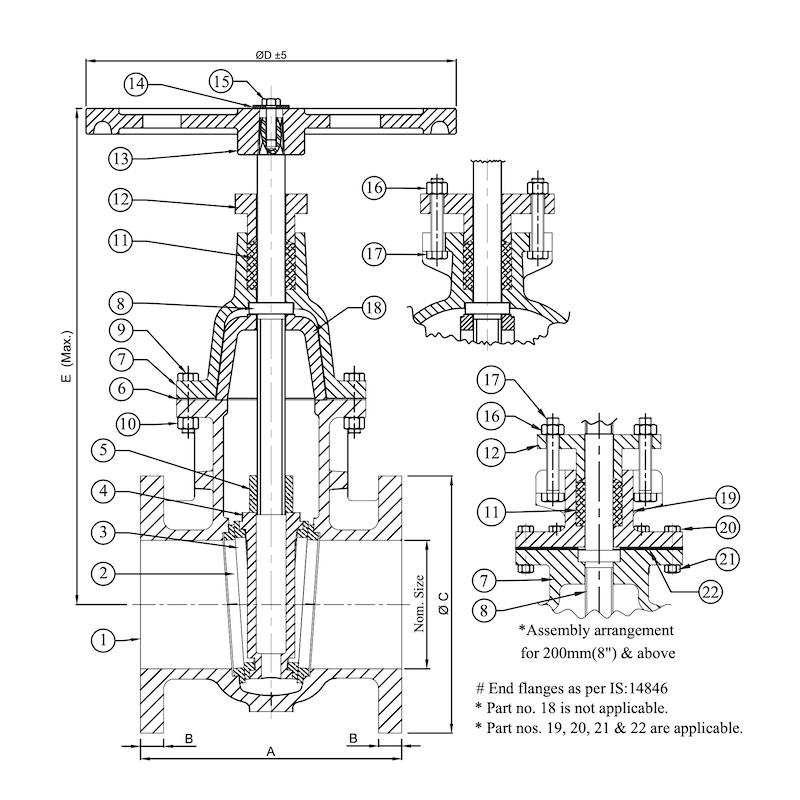

Sizes / Dimensions
| Size (Inches) | Size (mm) | A | B | ØC | ØD ±5 | E (Max.) |
|---|---|---|---|---|---|---|
| 2* | 50 | 178 ±2 | 16 +2 | 165 (+1.5/-1.0) | 280 | 365 |
| 2 1/2* | 65 | 190 ±2 | 16 +2 | 185 (+1.5/-1.0) | 280 | 380 |
| 3 | 80 | 203 ±2 | 21 ±3 | 200 ±4.5 | 280 | 425 |
| 4 | 100 | 229 ±2 | 22 ±3 | 220 ±4.5 | 360 | 470 |
| 5 | 125 | 254 ±2 | 22.5 ±3 | 250 ±4.5 | 360 | 485 |
| 6 | 150 | 267 ±2 | 23 ±3 | 285 (+5.5/-2.5) | 360 | 595 |
| 8# | 200# | 292 ±3 | 24.5 ±3 | 340 (+5.5/-2.5) | 450 | 725 |
| 10# | 250# | 330 ±3 | 26 ±3 | 395 (+5.5/-2.5) | 640 | 835 |
| 12# | 300# | 356 ±3 | 27.5 ±3 | 445 (+5.5/-2.5) | 640 | 910 |
* Flanges as per IS 14846.
# For size 200, 250 and 300 part number 18 is not applicable.
NOTE : Valve is also available with Brass Spindle at a nominal extra cost.
